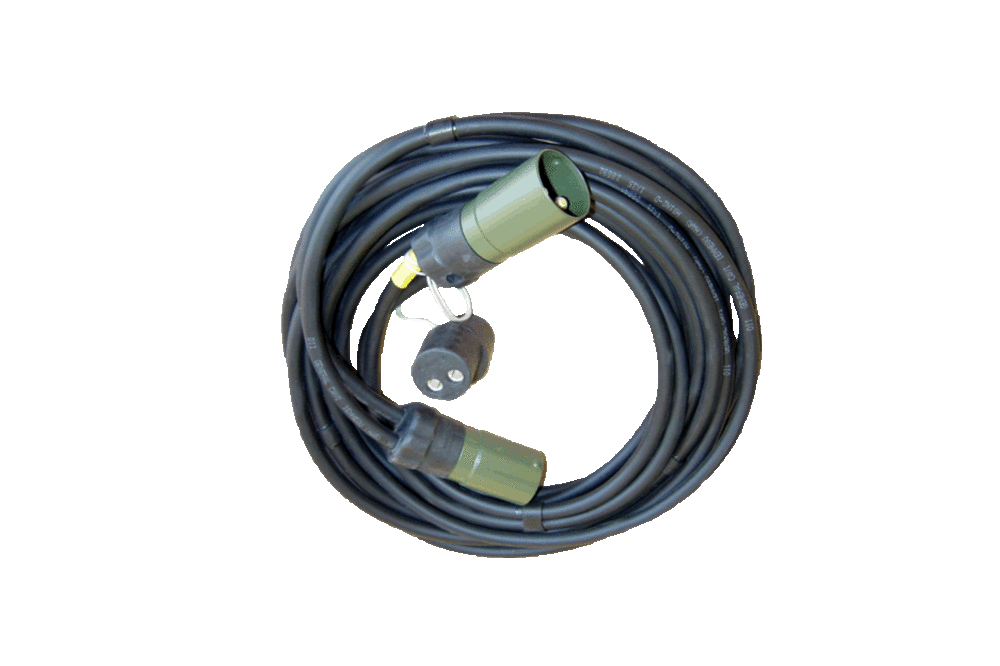

2-pin connection cable NATO with 2 plugs without screw ring
2-pin connection cable NATO VG 96917, designed with two plugs and a coupling without screw ring, suitable for MAN, Scania, DAF, Renault, Volvo, Mercedes Benz, Iveco, VW, Nissan, Mitsubishi, ....
Available in various lengths.
2-pin connection cable NATO with 2 plugs without screw ring
The 2-pin connection cable consists of two 2-pin plugs fitted with silver-plated crimp/solder contacts and a coupling without screw ring NATO VG 96917, assembled with welding cables, either H01N2-D 2x35 mm² or H01N2-D 2x50 mm².
These are assembled and tested to very high quality standards, ensuring protection class IPX4 and an operating temperature of -40°C to +85°C.
You can choose from the various versions listed in the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length A [mm] | Cross-section [mm²] | Item no. |
|---|---|---|
| 3500 | 2x35 | 656 229 335 |
| 6000 | 2x35 | 656 229 360 |
| 8000 | 2x35 | 656 229 380 |
| 10000 | 2x35 | 656 229 310 |
| 15000 | 2x35 | 656 229 315 |
| 20000 | 2x35 | 656 229 320 |
| 25000 | 2x35 | 656 229 325 |
| 3500 | 2x50 | 656 229 535 |
| 6000 | 2x50 | 656 229 560 |
| 8000 | 2x50 | 656 229 580 |
| 10000 | 2x50 | 656 229 510 |
| 15000 | 2x50 | 656 229 515 |
| 20000 | 2x50 | 656 229 520 |
| 25000 | 2x50 | 656 229 525 |
