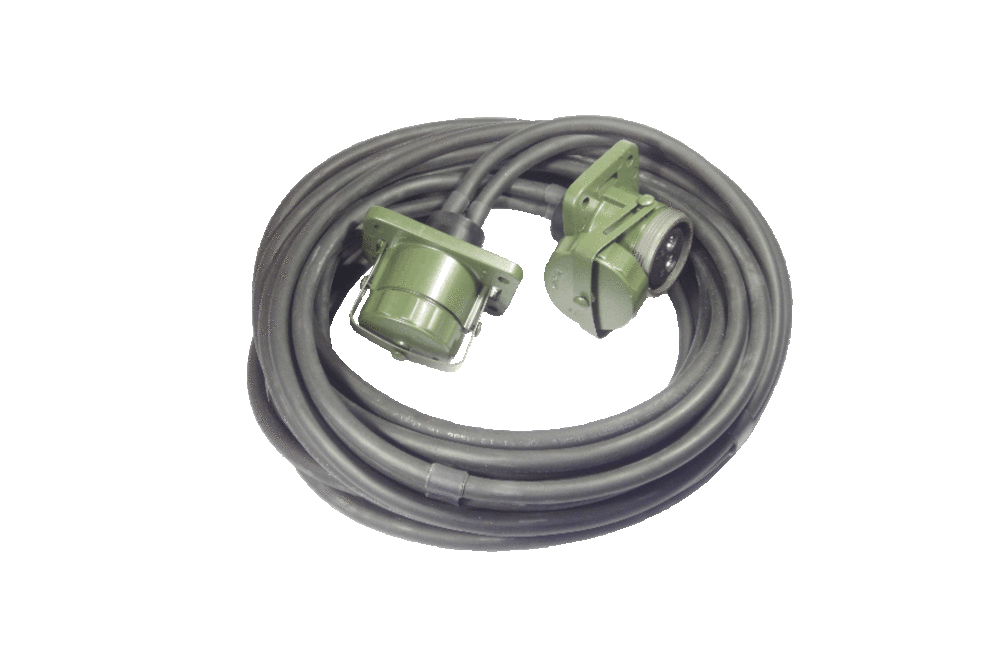

2-pin Connection Cable NATO with 2 Sockets
2-pin connection cable NATO VG 96917, designed with two sockets with rubber insert, suitable for MAN, Scania, DAF, Renault, Volvo, Mercedes Benz, Iveco, VW, Nissan, Mitsubishi, ....
Available in various lengths.
2-pin Connection Cable NATO with 2 Sockets
The 2-pin connection cable consists of two 2-pin sockets with rubber insert NATO VG 96917, fitted with silver-plated crimp/solder contacts, assembled with welding cables, either H01N2-D 2x35 mm² or H01N2-D 2x50 mm².
These are assembled and tested to very high quality standards, ensuring protection class IPX4 and an operating temperature of -40°C to +85°C.
Various versions can be selected according to the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length A [mm] | Cross-section [mm²] | Item no. |
|---|---|---|
| 3500 | 2x35 | 656 223 335 |
| 6000 | 2x35 | 656 223 360 |
| 8000 | 2x35 | 656 223 380 |
| 10000 | 2x35 | 656 223 310 |
| 15000 | 2x35 | 656 223 315 |
| 20000 | 2x35 | 656 223 320 |
| 25000 | 2x35 | 656 223 325 |
| 3500 | 2x50 | 656 223 535 |
| 6000 | 2x50 | 656 223 560 |
| 8000 | 2x50 | 656 223 580 |
| 10000 | 2x50 | 656 223 510 |
| 15000 | 2x50 | 656 223 515 |
| 20000 | 2x50 | 656 223 520 |
| 25000 | 2x50 | 656 223 525 |
