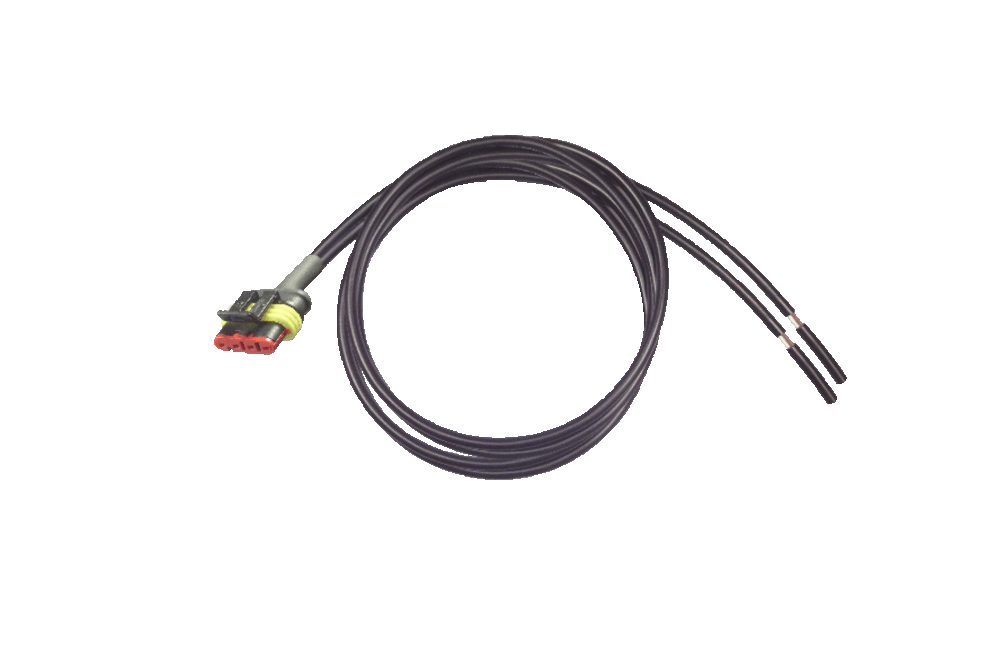

4-pin Y connecting cable Superseal with socket housing
4-pin Y connecting cable for side marker lamps with Superseal connectors, designed with one socket housing and two open ends, suitable for IVECO Stralis or Eurocargo.
Available in various lengths and versions.
4-pin Y connecting cable Superseal with socket housing
The 4-pin Y connecting cable consists of a 4-pin socket housing of the Superseal series fitted with contacts and single-wire seals, assembled with either two 2-pin sheathed cables FLRYY 2x1,0 mm², two 2-pin flat cables suitable for Aspöck P&R 2x1,5 mm² or two 2-pin flat cables suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The specified lengths refer to the length of the individual wires.
Variants
| Length A / B [mm] | Version | Item no. |
|---|---|---|
| 2000 / 2000 | 2x1,0 mm² round cable | 084 402 302 |
| 4000 / 4000 | 2x1,0 mm² round cable | 084 402 304 |
| 2000 / 2000 | 2x1,5 mm² Aspöck P&R | 084 405 302 |
| 4000 / 4000 | 2x1,5 mm² Aspöck P&R | 084 405 304 |
suitable for IVECO Eurocargo / Pin 1 = ground
| Length A / B [mm] | Version | Item no. |
|---|---|---|
| 2000 / 2000 | 2x1,0 mm² round cable | 184 402 302 |
| 4000 / 4000 | 2x1,0 mm² round cable | 184 402 304 |
| 2000 / 2000 | 2x1,5 mm² Aspöck P&R | 184 405 302 |
| 4000 / 4000 | 2x1,5 mm² Aspöck P&R | 184 405 304 |
