2-pin Y extension cable Superseal
2-pin Y extension cable for side marker lamps with Superseal connectors, designed with a pin housing and two socket housings, suitable for various Proplast.
Available in various lengths and versions.
Used e.g. to add a side marker lamp.
2-pin Y extension cable Superseal

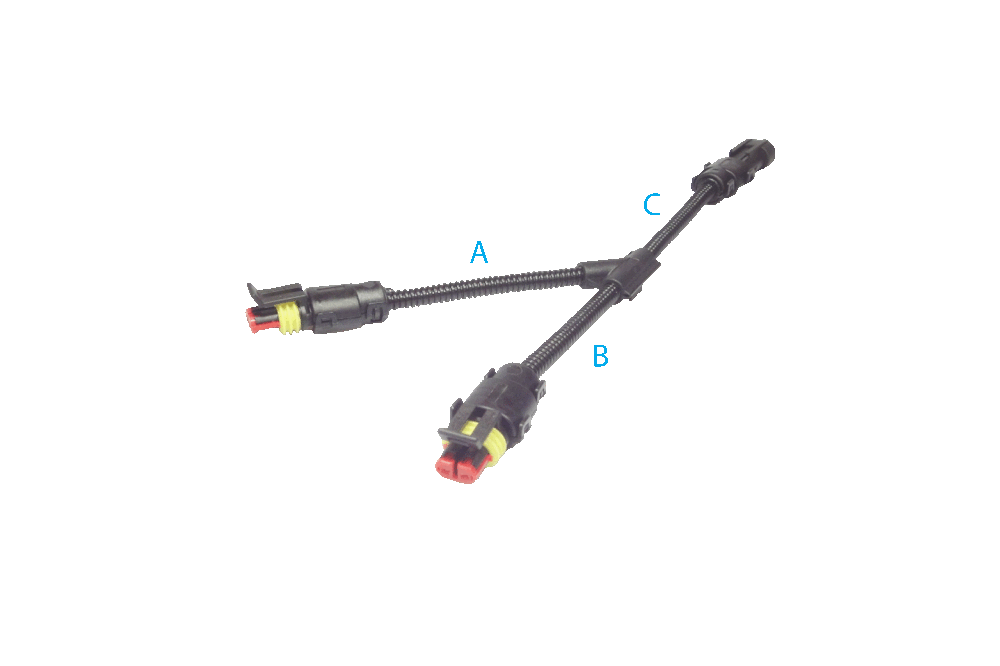

The 2-pin Y extension cable consists of a 2-pin pin housing and two socket housings of the Superseal series fitted with contacts and single-wire seals, assembled with single wires FLRY-B 2x 1,0 mm² in a corrugated tube NW 4,5 standard profile made of PA6 with straight corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length A / B / C [mm] | Item no. |
|---|---|
| 800 / 1800 / 200 | 084 888 201 |
| 1800 / 1800 / 200 | 084 888 202 |
| 1800 / 2800 / 200 | 084 888 203 |
| 1800 / 3800 / 200 | 084 888 204 |
