2-pin Y extension cable JPT
2-pin Y extension cable for side marker lamps with JPT connectors, designed with one pin housing and two socket housings, suitable for various Vignal.
Available in various lengths and versions.
Used, for example, for extending and adding a side marker lamp.
2-pin Y extension cable JPT

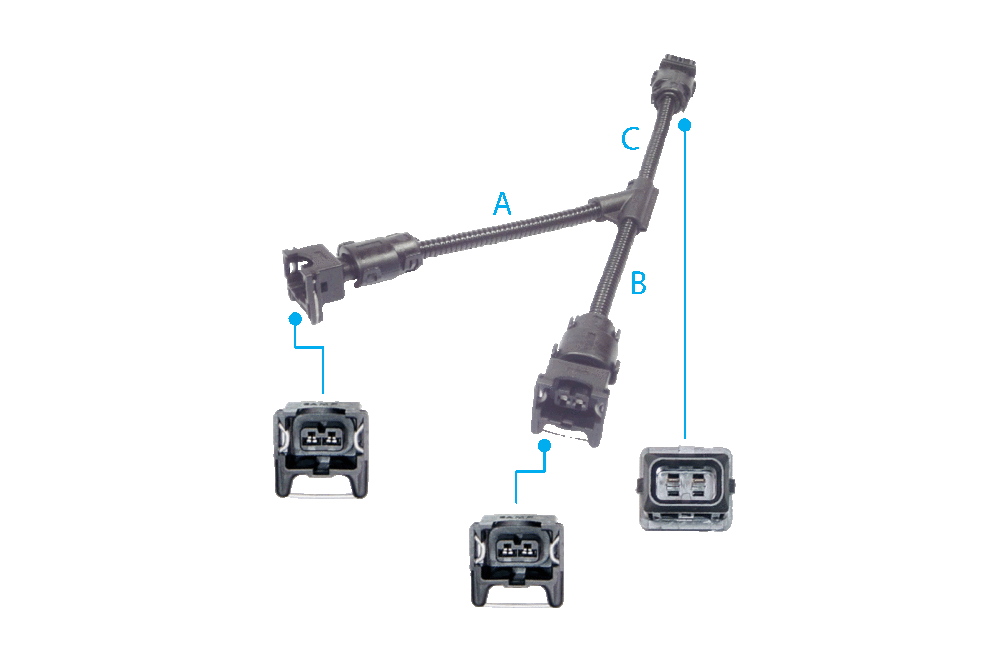

The 2-pin Y extension cable consists of one 2-pin pin housing and two socket housings of the JPT series fitted with contacts and single-wire seals, assembled with single wires FLRY-B 2x 1,0 mm² in a corrugated tube NW 4,5 standard profile made of PA6 and straight corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The specified lengths refer to the length of the individual wires.
Variants
| Length A / B / C [mm] | Item no. |
|---|---|
| 800 / 1800 / 200 | 084 088 201 |
| 1800 / 1800 / 200 | 084 088 202 |
| 1800 / 2800 / 200 | 084 088 203 |
| 1800 / 3800 / 200 | 084 088 204 |
