2-pin Y extension cable FEP 2.8
2-pin Y extension cable for side marker lamps with FEP 2.8 connectors, designed with one pin housing and two socket housings, suitable for Mercedes Benz, Scania and Volvo.
Available in various lengths and versions.
Used e.g. for extending and adding a side marker lamp.
2-pin Y extension cable FEP 2.8

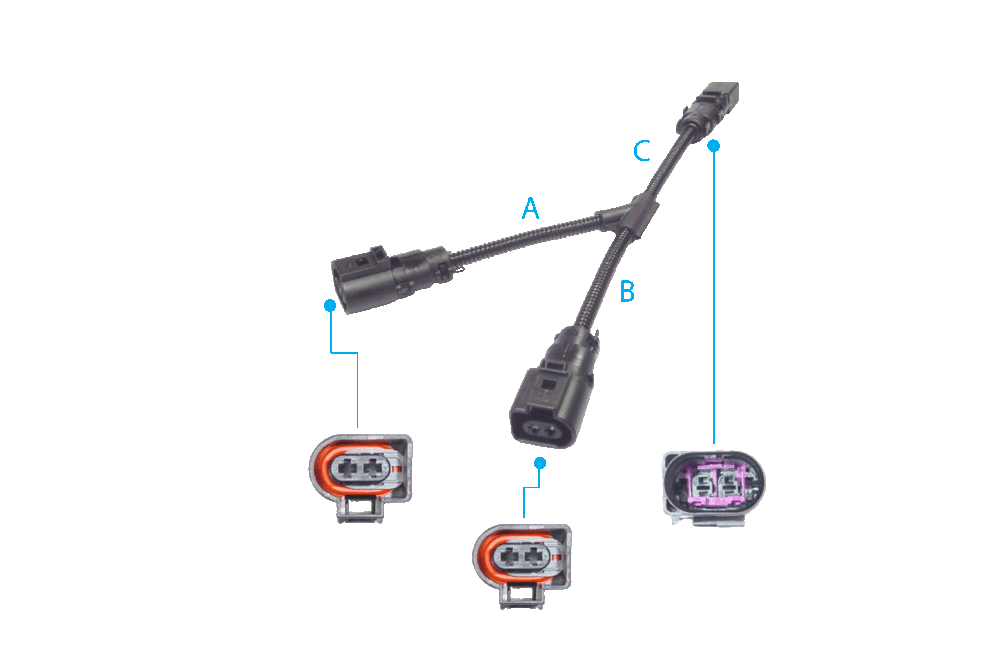

The 2-pin Y extension cable consists of one 2-pin pin housing and two socket housings of the FEP 2.8 series fitted with contacts and single-wire seals, assembled with single wires FLRY-B 2x 1,0 mm² in a corrugated tube NW 4,5 standard profile made of PA6 and straight corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The stated lengths refer to the length of the individual cables.
Variants
| Length A / B / C [mm] | Item no. |
|---|---|
| 800 / 1800 / 200 | 084 588 201 |
| 1800 / 1800 / 200 | 084 588 202 |
| 1800 / 2800 / 200 | 084 588 203 |
| 1800 / 3800 / 200 | 084 588 204 |
