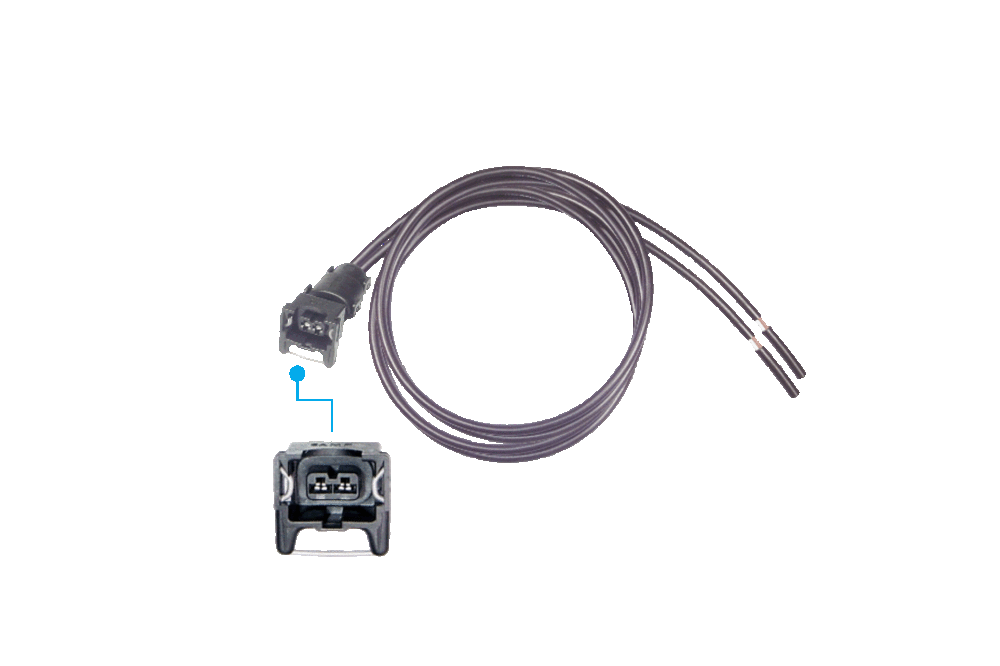

2-pin Y connecting cable JPT with socket housing
2-pin Y connecting cable for two side marker lamps with JPT connectors, designed with a socket housing and two open ends, suitable for various Vignal.
Available in various lengths and versions.
2-pin Y connecting cable JPT with socket housing
The 2-pin Y connecting cable consists of a 2-pin socket housing of the JPT series fitted with contacts and single-wire seals, assembled with either two 2-pin sheathed cables FLRYY 2x1,0 mm², two 2-pin flat cables suitable for Aspöck P&R 2x1,5 mm² or two 2-pin flat cables suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length A / B [mm] | Version | Item no. |
|---|---|---|
| 2000 / 2000 | 2x1,0 mm² round cable | 084 022 312 |
| 4000 / 4000 | 2x1,0 mm² round cable | 084 022 314 |
| 2000 / 2000 | 2x1,5 mm² Aspöck P&R | 084 025 312 |
| 4000 / 4000 | 2x1,5 mm² Aspöck P&R | 084 025 314 |
