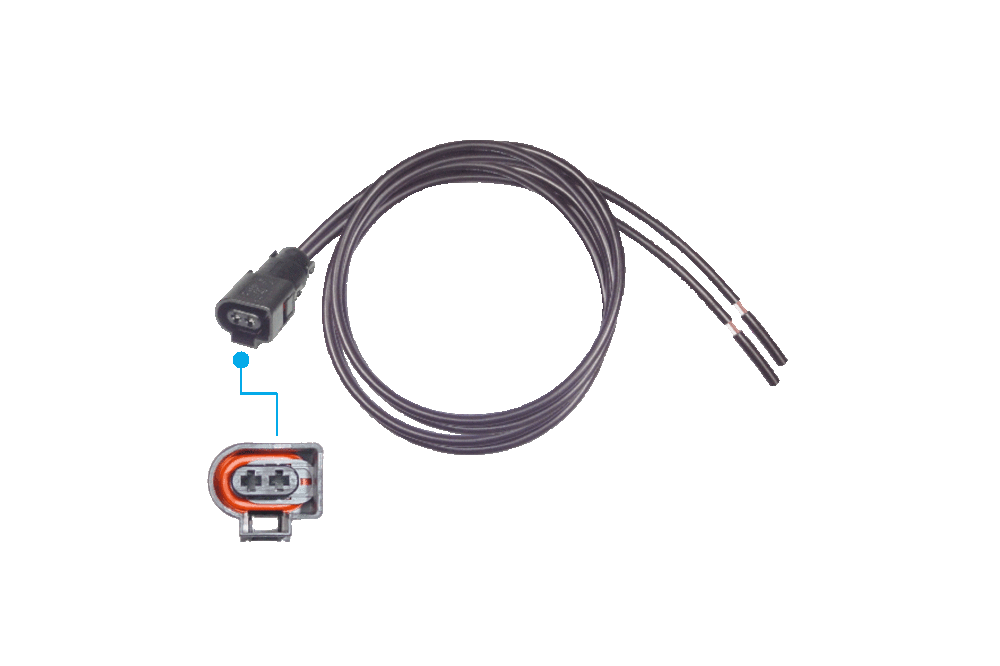

2-pin Y connecting cable FEP 2.8 with socket housing
2-pin Y connecting cable for two side marker lamps with FEP 2.8 connectors, designed with one socket housing and two open ends, suitable for Mercedes Benz, Scania and Volvo.
Available in various lengths and versions.
2-pin Y connecting cable FEP 2.8 with socket housing
The 2-pin Y connecting cable consists of a socket housing of the FEP 2.8 series fitted with contacts and single-wire seals, assembled with either two 2-pin sheathed cables FLRYY 2x1,0 mm², two 2-pin flat cables suitable for Aspöck P&R 2x1,5 mm² or two 2-pin flat cables suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The specified lengths refer to the length of the individual wires.
Variants
| Length A / B [mm] | Version | Item no. |
|---|---|---|
| 2000 / 2000 | 2x1,0 mm² round cable | 084 522 302 |
| 4000 / 4000 | 2x1,0 mm² round cable | 084 522 304 |
| 2000 / 2000 | 2x1,5 mm² Aspöck P&R | 084 525 302 |
| 4000 / 4000 | 2x1,5 mm² Aspöck P&R | 084 525 304 |
