2-pin extension cable Superseal with branch
2-pin extension cable for side marker lamps with Superseal connectors and a 2-pin branch, suitable for various Proplast models.
Available in various lengths and versions.
Used e.g. for adding a side marker lamp.
2-pin extension cable Superseal with branch
The 2-pin extension cable consists of a 2-pin pin housing and socket housing of the Superseal series fitted with contacts and single-wire seals, assembled with single wires FLRY-B 2x 1,0 mm² in a corrugated tube NW 4,5 standard profile made of PA6 and two straight corrugated tube adapters. The 2-pin branch is optionally made with a 2-pin round cable FLRYY 2x1,0 mm², a 2-pin flat cable suitable for Aspöck P&R 2x1,5 mm² or a 2-pin flat cable suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.

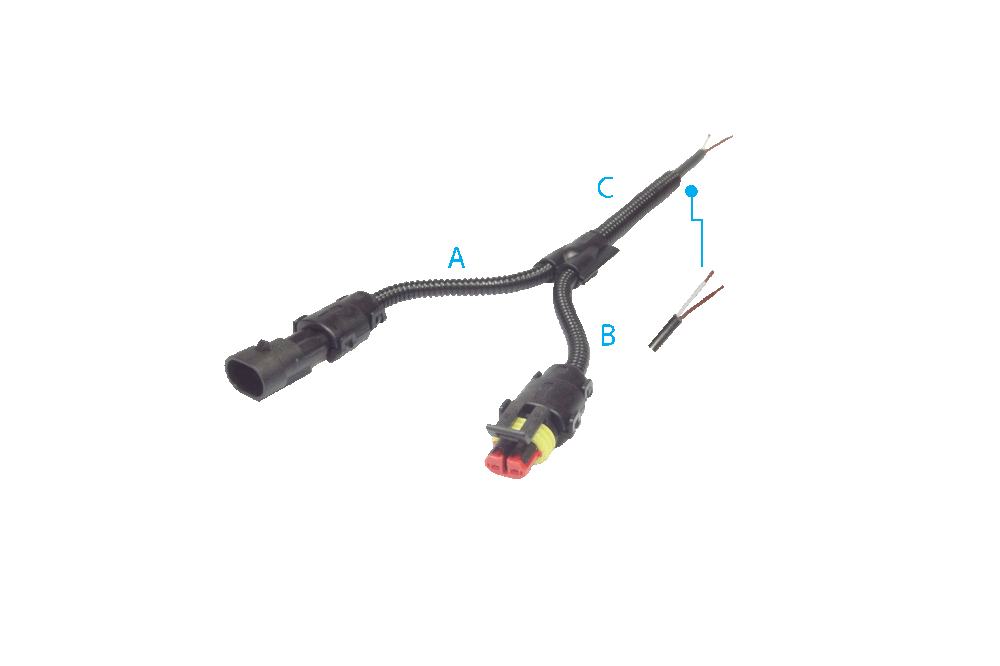

The stated lengths refer to the length of the individual cables.
Variants
| Length A / B / C [mm] | Version | Item no. |
|---|---|---|
| 250 / 250 / 3000 | 2x1,0 mm² round cable | 284 802 023 |
| 500 / 500 / 5000 | 2x1,0 mm² round cable | 284 805 055 |
| 250 / 250 / 3000 | 2x1,5 mm² Aspöck P&R | 384 802 023 |
| 500 / 500 / 5000 | 2x1,5 mm² Aspöck P&R | 384 805 055 |
