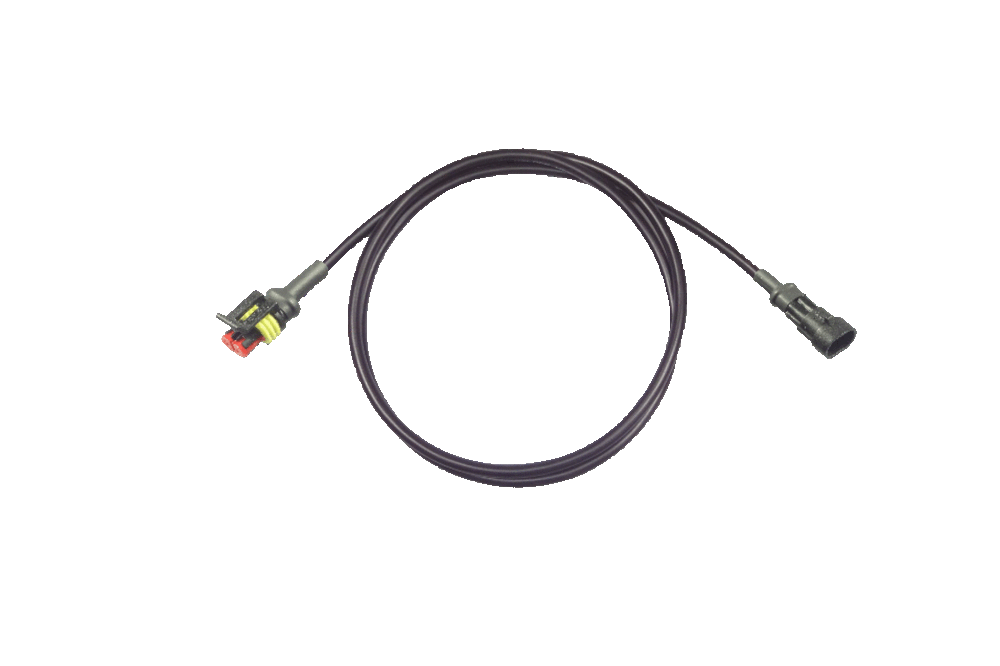

2-pin extension cable Superseal
2-pin extension cable for side marker lamps with Superseal connectors, suitable for various Proplast.
Optionally with single wires in a corrugated tube or with a sheathed cable. Available in various lengths.
2-pin extension cable Superseal
The 2-pin extension cable consists of a 2-pin pin housing and socket housing of the Superseal series fitted with contacts and single-wire seals, assembled with either single wires FLRY-B 2x 1,0 mm² in a corrugated tube NW 4,5 standard profile made of PA6 and straight corrugated tube adapters, or a 2-pin sheathed cable FLRYY 2x1,0 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The specified lengths refer to the length of the individual wires.
Variants
| Length [mm] | Version | Item no. |
|---|---|---|
| 2000 | 2x1,0 mm² corrugated tube | 084 844 032 |
| 4000 | 2x1,0 mm² corrugated tube | 084 844 034 |
| 2000 | 2x1,0 mm² round cable | 084 842 032 |
| 4000 | 2x1,0 mm² round cable | 084 842 034 |
