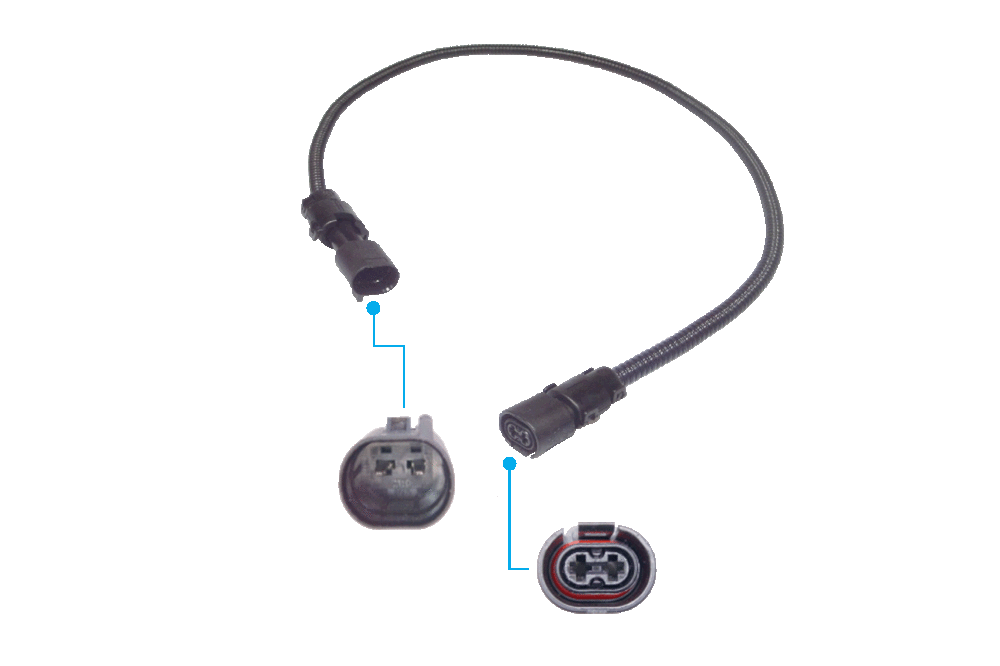

2-pin Extension Cable MDK 3 Plus
2-pin extension cable for side marker lamps with MDK 3 Plus connectors, suitable for MAN.
Available in various lengths and versions.
2-pin Extension Cable MDK 3 Plus
The 2-pin extension cable consists of a 2-pin pin and socket housing of the MDK 3 Plus series, fitted with contacts and single-wire seals, assembled with either single wires FLRY-B 2x 1,0 mm² in a corrugated tube NW 4,5 standard profile made of PA6 and straight corrugated tube adapters, or a 2-pin sheathed cable FLRYY 2x1,0 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
Various versions can be selected according to the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length [mm] | Version | Item no. |
|---|---|---|
| 2000 | 2x1,0 mm² corrugated tube | 084 144 002 |
| 4000 | 2x1,0 mm² corrugated tube | 084 144 004 |
| 2000 | 2x1,0 mm² round cable | 084 142 002 |
| 4000 | 2x1,0 mm² round cable | 084 142 004 |
