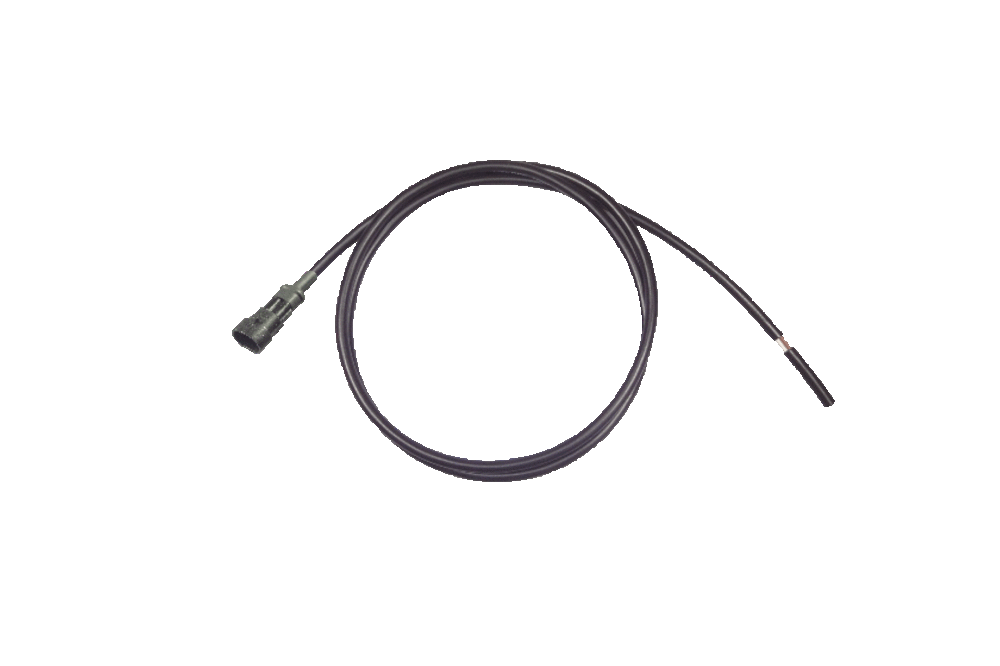

2-pin connecting cable Superseal with pin housing
2-pin connecting cable for side marker lamps with Superseal connectors, designed with one pin housing and one open end, suitable for various Proplast.
Available in various lengths and versions.
2-pin connecting cable Superseal with pin housing
The 2-pin connecting cable consists of a 2-pin pin housing of the Superseal series fitted with contacts and single-wire seals, assembled with either a 2-pin sheathed cable FLRYY 2x1,0 mm², a 2-pin flat cable suitable for Aspöck P&R 2x1,5 mm² or a 2-pin flat cable suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The specified lengths refer to the length of the individual wires.
Variants
| Length [mm] | Version | Item no. |
|---|---|---|
| 2000 | 2x1,0 mm² round cable | 084 022 132 |
| 4000 | 2x1,0 mm² round cable | 084 022 134 |
| 2000 | 2x1,5 mm² Aspöck P&R | 084 025 132 |
| 4000 | 2x1,5 mm² Aspöck P&R | 084 025 134 |
