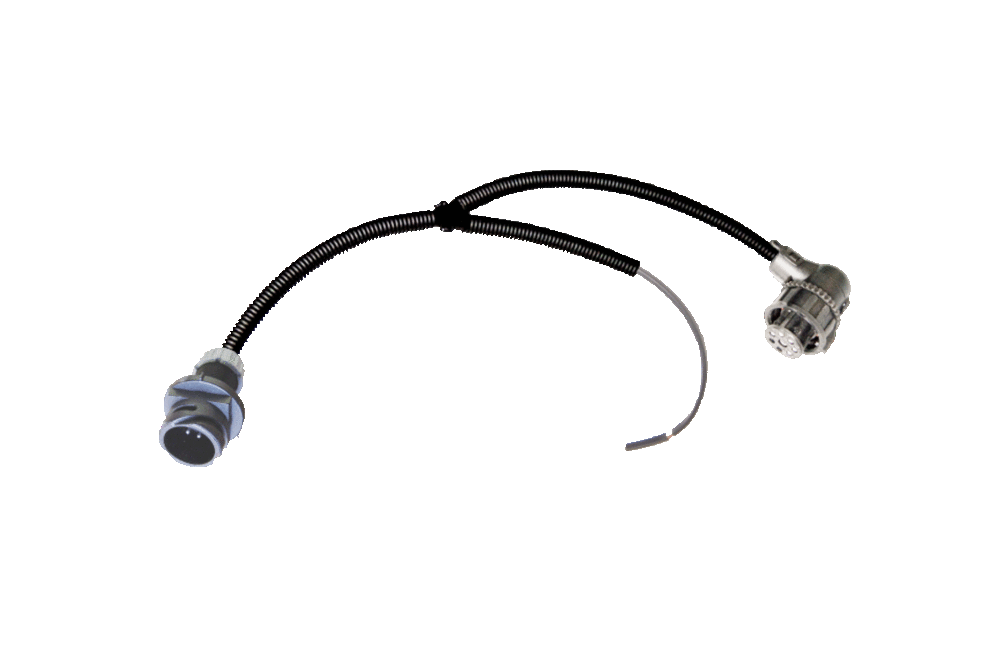

8-pin extension cable SEAL Bajonett 16S with branch
8-pin extension cable 24V for rear lamps with SEAL Bajonett 16S connectors and with a 2-pin branch, suitable for IVECO.
Optionally with a straight or angled socket housing. Available in various lengths and versions.
Used e.g. to add a licence plate lamp.
8-pin extension cable SEAL Bajonett 16S with branch
The 8-pin extension cable consists of an 8-pin pin housing and socket housing SEAL Bajonett 16S fitted with contacts and single-wire seals, assembled with single wires FLRY-B 8x 1,5 mm² in a corrugated tube NW 10 standard profile made of PA6 and either straight or 90° angled corrugated tube adapters. The 2-pin branch is designed with either a 2-pin round cable FLRYY 2x1,0 mm², a 2-pin flat cable suitable for Aspöck P&R 2x1,5 mm² or a 2-pin flat cable suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length A / B / C [mm] | Corrugated tube adapter | Version | Item no. |
|---|---|---|---|
| 250 / 1350 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 6 STL) | 083 324 162 |
| 250 / 1750 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 6 STL) | 083 324 202 *) |
| 250 / 1350 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 6 STL) | 083 354 162 |
| 250 / 1750 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 6 STL) | 083 354 202 |
| 250 / 1350 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 6 STL) | 083 424 162 |
| 250 / 1750 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 6 STL) | 083 424 202 |
| 250 / 1350 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 6 STL) | 083 454 162 |
| 250 / 1750 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 6 STL) | 083 454 202 |
