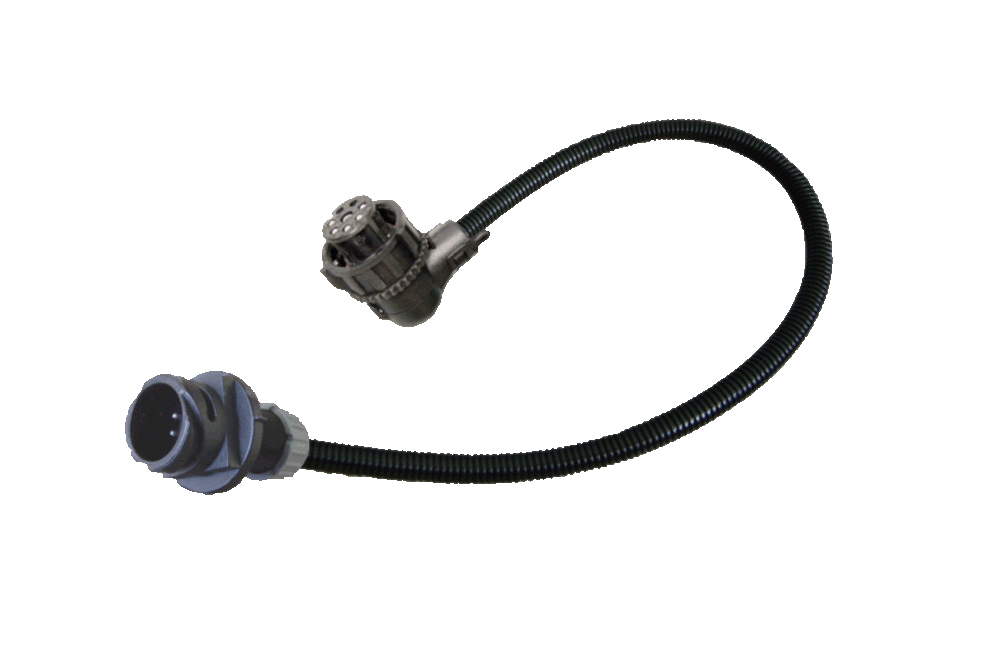

8-pin Extension Cable SEAL Bayonet 16S
8-pin extension cable 24V for rear lamps with SEAL Bayonet 16S connectors, suitable for IVECO.
Optionally with a straight or angled socket housing. Available in various lengths.
Used e.g. for a frame extension.
8-pin Extension Cable SEAL Bayonet 16S
The 8-pin extension cable consists of an 8-pin pin and socket housing SEAL Bayonet 16S, fitted with contacts and single-wire seals, assembled with single wires FLRY-B 8x 1,5 mm² in a corrugated tube NW 10 standard profile made of PA6 and either straight or 90° angled corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
Various versions can be selected according to the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length [mm] | Corrugated tube adapter | Item no. |
|---|---|---|
| 1000 | 90° / 180° | 083 200 100 *) |
| 1600 | 90° / 180° | 083 200 160 |
| 2000 | 90° / 180° | 083 200 200 *) |
| 2500 | 90° / 180° | 083 200 250 |
| 1000 | 2 x 180° | 083 288 100 |
| 1600 | 2 x 180° | 083 288 160 |
| 2000 | 2 x 180° | 083 288 200 |
| 2500 | 2 x 180° | 083 288 250 |
