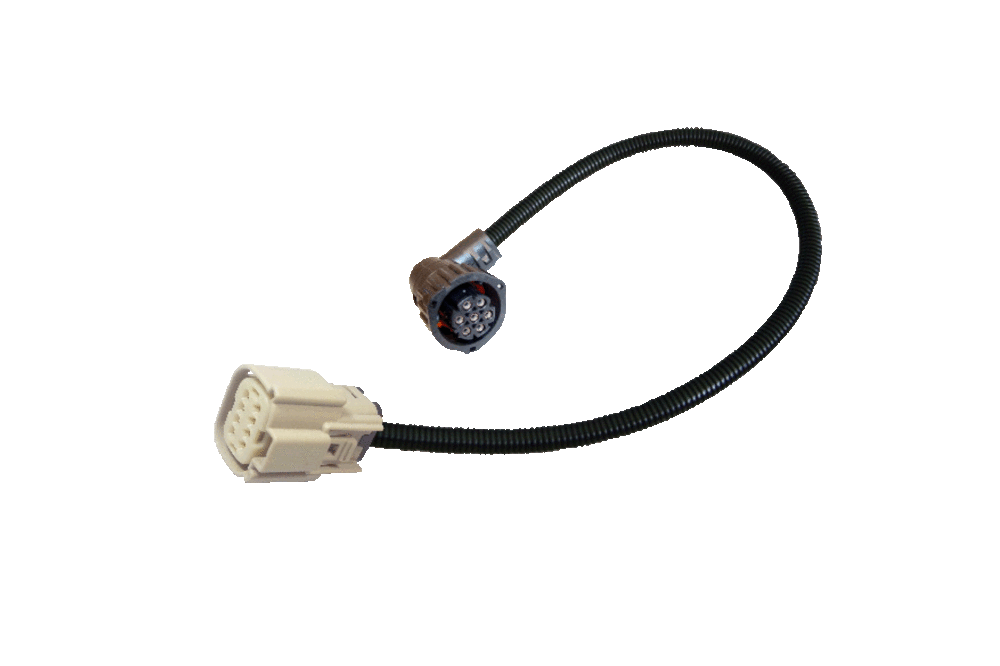

8/7-pin adapter cable MX150 to DIN 72585
8/7-pin adapter cable 24V for rear lamps with DIN circular connectors, designed with an 8-pin socket housing MX150 (B-grey) and a 7-pin socket housing DIN 72585, suitable for Ford Transit with IVECO Daily rear lamp.
Available in various lengths.
Used, for example, when replacing the rear lamps.
8/7-pin adapter cable MX150 to DIN 72585
The 8/7-pin adapter cable consists of an 8-pin socket housing of the MX150 series (B-grey) fitted with contacts and with an interface seal, and a 7-pin socket housing to DIN 72585 / ISO 15170 fitted with contacts and single-wire seals, assembled with single wires FLRY-B 6x 1,0 mm² in a corrugated tube NW 8,5 standard profile made of PA6 and a corrugated tube adapter, either straight or 90° angled.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The specified lengths refer to the length of the individual wires.
Variants
| Suitable for | Length [mm] | Corrugated tube adapter | Item no. |
|---|---|---|---|
| Ford Transit to IVECO Daily left | 1000 | 90° | 183 047 100 L |
| Ford Transit to IVECO Daily left | 1600 | 90° | 183 047 160 L |
| Ford Transit to IVECO Daily left | 2000 | 90° | 183 047 200 L |
| Ford Transit to IVECO Daily right | 1000 | 90° | 183 047 100 R |
| Ford Transit to IVECO Daily right | 1600 | 90° | 183 047 160 R |
| Ford Transit to IVECO Daily right | 2000 | 90° | 183 047 200 R |
