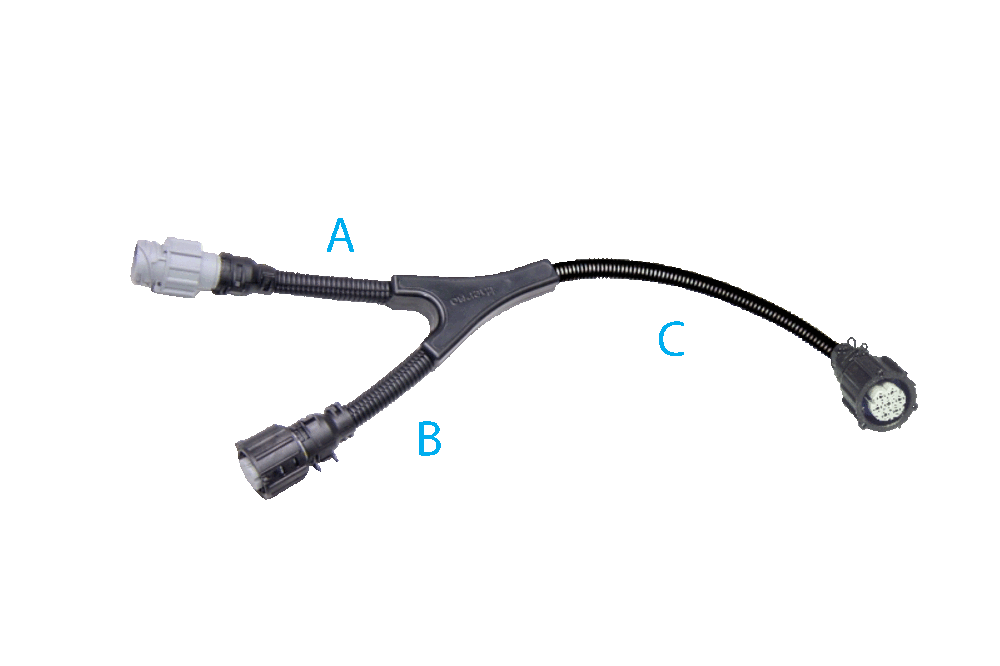

7-pin Y Extension Cable DIN 72585
7-pin Y extension cable 24V for rear lamps with DIN round connectors, designed with a pin housing and two socket housings, suitable for MAN, Scania, DAF, Renault, Volvo, Mercedes Benz, Iveco, VW, Nissan, Mitsubishi, ….
Optionally with a straight or angled socket housing. Available in various lengths.
Used e.g. for adding a 2nd lamp with a DIN round connector.
7-pin Y Extension Cable DIN 72585
The 7-pin Y extension cable consists of a potted 7-pin pin housing and two socket housings according to DIN 72585 / ISO 15170, fitted with contacts and single-wire seals, assembled with single wires 2x FLRY-B 5x 1,0 mm² + 1x 1,5 mm² + 1x 2,5 mm² in a corrugated tube NW 10 standard profile made of PA6 and either straight or 90° angled corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
Various versions can be selected according to the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length A / B / C [mm] | Corrugated tube adapter | Item no. |
|---|---|---|
| 250 / 250 / 850 | 3 x 180° | 483 025 080 *) |
| 250 / 250 / 1100 | 3 x 180° | 483 025 110 |
| 250 / 250 / 1600 | 3 x 180° | 483 025 160 |
| 250 / 250 / 2000 | 3 x 180° | 483 025 200 |
| 250 / 250 / 3000 | 3 x 180° | 483 025 300 |
