7-pin extension cable HDSCS with branch

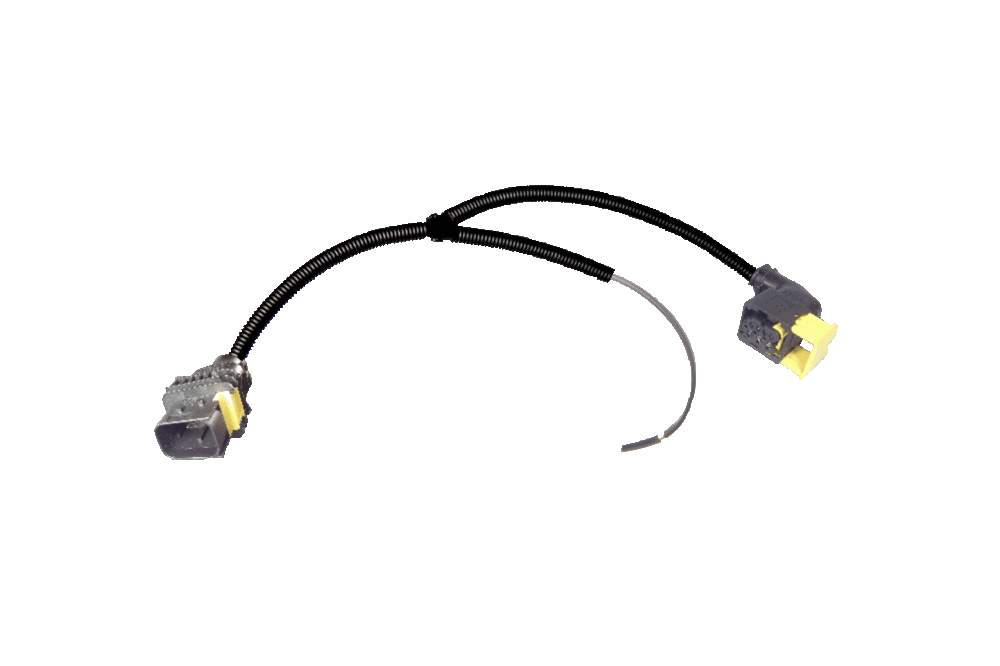

7-pin extension cable 24V for rear lamps with HDSCS connectors and a 2-pin branch, suitable for Mercedes Benz Actros, Antos and Atego.
Optionally with a straight or angled socket housing. Available in various lengths and versions.
Used e.g. for adding a licence plate lamp.
7-pin extension cable HDSCS with branch
The 7-pin extension cable consists of a 7-pin pin housing and socket housing of the HDSCS series fitted with contacts and single-wire seals, assembled with single wires FLRY-B 7x 1,0 mm² in a corrugated tube NW 13 standard profile made of PA6 and optionally straight or 90° angled corrugated tube adapters. The 2-pin branch is optionally made with a 2-pin round cable FLRYY 2x1,0 mm², a 2-pin flat cable suitable for Aspöck P&R 2x1,5 mm² or a 2-pin flat cable suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The stated lengths refer to the length of the individual cables.
Variants
| Length A / B / C [mm] | Corrugated tube adapter | Version | Item no. |
|---|---|---|---|
| 250 / 1350 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 1 STL) | 083 325 162 *) |
| 250 / 1750 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 1 STL) | 083 325 202 *) |
| 250 / 1350 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 1 STL) | 083 322 162 *) |
| 250 / 1750 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 1 STL) | 083 322 202 *) |
| 250 / 1350 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 1 STL) | 083 425 162 |
| 250 / 1750 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 1 STL) | 083 425 202 |
| 250 / 1350 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 1 STL) | 083 422 162 |
| 250 / 1750 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 1 STL) | 083 422 202 |
