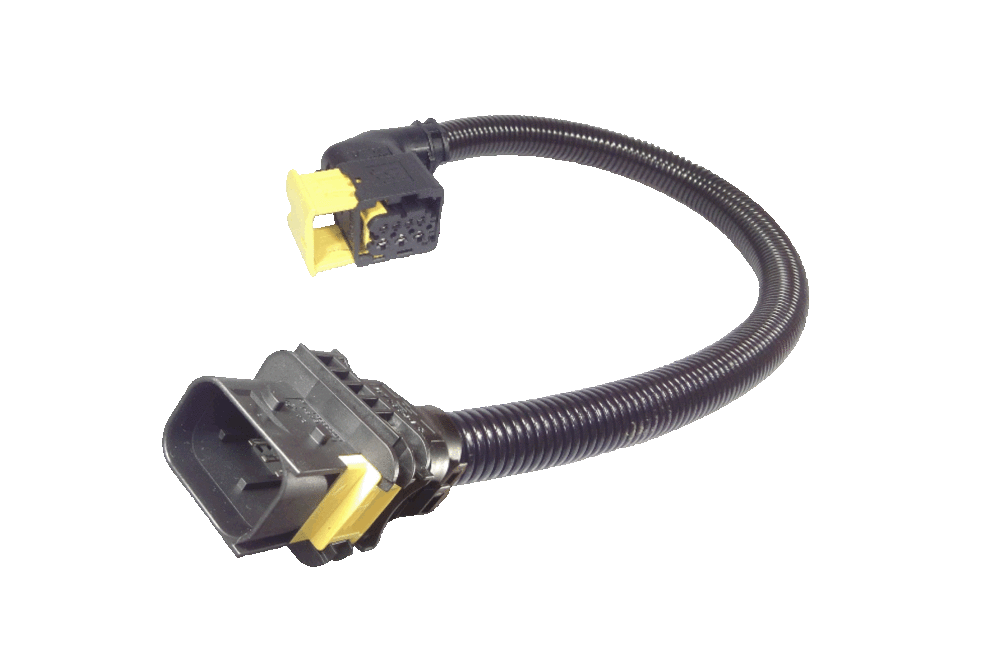

7-pin extension cable HDSCS
7-pin extension cable 24V for rear lamps with HDSCS connectors, suitable for Mercedes Benz Actros, Antos and Atego.
Optionally with a straight or angled socket housing. Available in various lengths.
Used, for example, for a frame extension.
7-pin extension cable HDSCS
The 7-pin extension cable consists of a 7-pin pin housing and socket housing of the HDSCS series fitted with contacts and single-wire seals, assembled with single wires FLRY-B 7x 1,0 mm² in a corrugated tube NW 13 standard profile made of PA6 and either straight or 90° angled corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The specified lengths refer to the length of the individual wires.
Variants
| Length [mm] | Corrugated tube adapter | Item no. |
|---|---|---|
| 1000 | 90° / 180° | 083 005 100 *) |
| 1600 | 90° / 180° | 083 005 160 |
| 2000 | 90° / 180° | 083 005 200 *) |
| 2500 | 90° / 180° | 083 005 250 |
| 1000 | 2 x 180° | 083 885 100 |
| 1600 | 2 x 180° | 083 885 160 |
| 2000 | 2 x 180° | 083 885 200 |
| 2500 | 2 x 180° | 083 885 250 |
