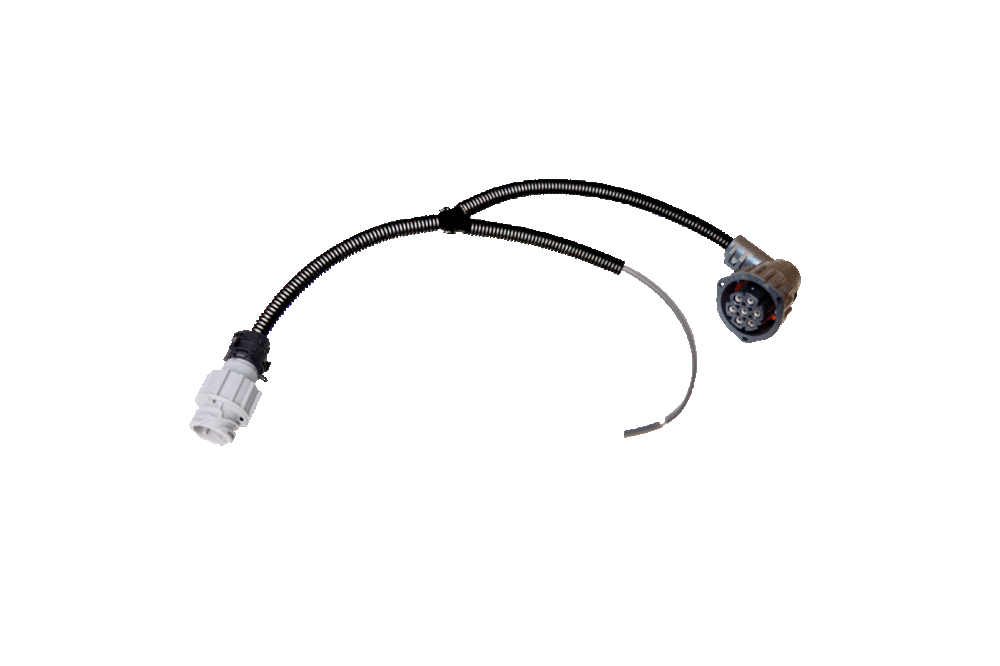

7-pin extension cable DIN 72585 TE with branch
7-pin extension cable 24V for rear lamps with DIN circular connectors and a 2-pin branch, suitable for MAN, Scania, DAF, Renault, Volvo, Mercedes Benz, Iveco, VW, Nissan, Mitsubishi, ….
Optionally with a straight or angled socket housing. Available in various lengths and versions.
Used, for example, for adding a licence plate lamp.
7-pin extension cable DIN 72585 TE with branch
The 7-pin extension cable consists of a 7-pin pin housing and socket housing to DIN 72585 / ISO 15170 fitted with contacts and single-wire seals, assembled with single wires FLRY-B 5x 1,0 mm² + 1x 1,5 mm² + 1x 2,5 mm² in a corrugated tube NW 8,5 standard profile made of PA6 and either straight or 90° angled corrugated tube adapters. The 2-pin branch is made with either a 2-pin round cable FLRYY 2x1,0 mm², a 2-pin flat cable suitable for Aspöck P&R 2x1,5 mm² or a 2-pin flat cable suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The specified lengths refer to the length of the individual wires.
Variants
| Suitable for | Length A / B / C [mm] | Corrugated tube adapter | Version | Item no. |
|---|---|---|---|---|
| Mercedes Benz | 250 / 1350 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 2 STL) | 083 532 162 *) |
| Mercedes Benz | 250 / 1750 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 2 STL) | 083 532 202 *) |
| Mercedes Benz | 250 / 1350 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 2 STL) | 083 535 162 *) |
| Mercedes Benz | 250 / 1750 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 2 STL) | 083 535 202 *) |
| Mercedes Benz | 250 / 1350 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 2 STL) | 083 542 162 |
| Mercedes Benz | 250 / 1750 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 2 STL) | 083 542 202 |
| Mercedes Benz | 250 / 1350 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 2 STL) | 083 545 162 |
| Mercedes Benz | 250 / 1750 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 2 STL) | 083 545 202 |
