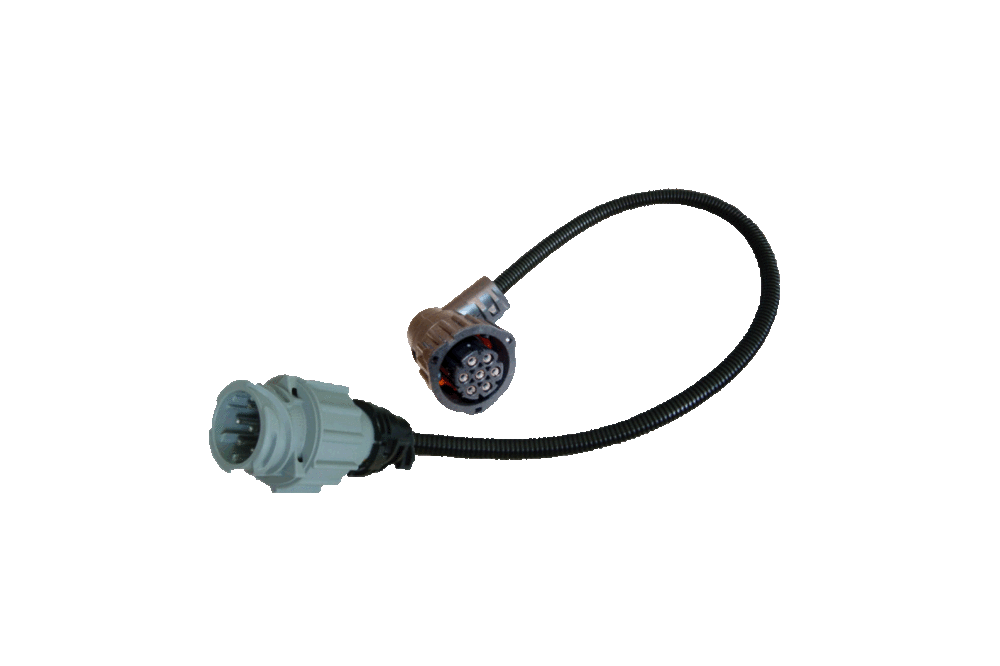

7-pin extension cable DIN 72585 TE
7-pin extension cable 24V for rear lamps with DIN round connectors, suitable for MAN, Scania, DAF, Renault, Volvo, Mercedes Benz, Iveco, VW, Nissan, Mitsubishi, ....
Optionally with a straight or angled socket housing. Available in various lengths.
Used e.g. for a frame extension.
7-pin extension cable DIN 72585 TE
The 7-pin extension cable consists of a 7-pin pin housing and socket housing according to DIN 72585 / ISO 15170 fitted with contacts and single-wire seals, assembled with single wires FLRY-B 5x 1,0 mm² + 1x 1,5 mm² + 1x 2,5 mm² in a corrugated tube NW 8,5 standard profile made of PA6 and either straight or 90° angled corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length [mm] | Corrugated tube adapter | Item no. |
|---|---|---|
| 1000 | 90° / 180° | 083 500 100 *) |
| 1600 | 90° / 180° | 083 500 160 |
| 2000 | 90° / 180° | 083 500 200 *) |
| 2500 | 90° / 180° | 083 500 250 |
| 1000 | 2 x 180° | 083 588 100 |
| 1600 | 2 x 180° | 083 588 160 |
| 2000 | 2 x 180° | 083 588 200 |
| 2500 | 2 x 180° | 083 588 250 |
