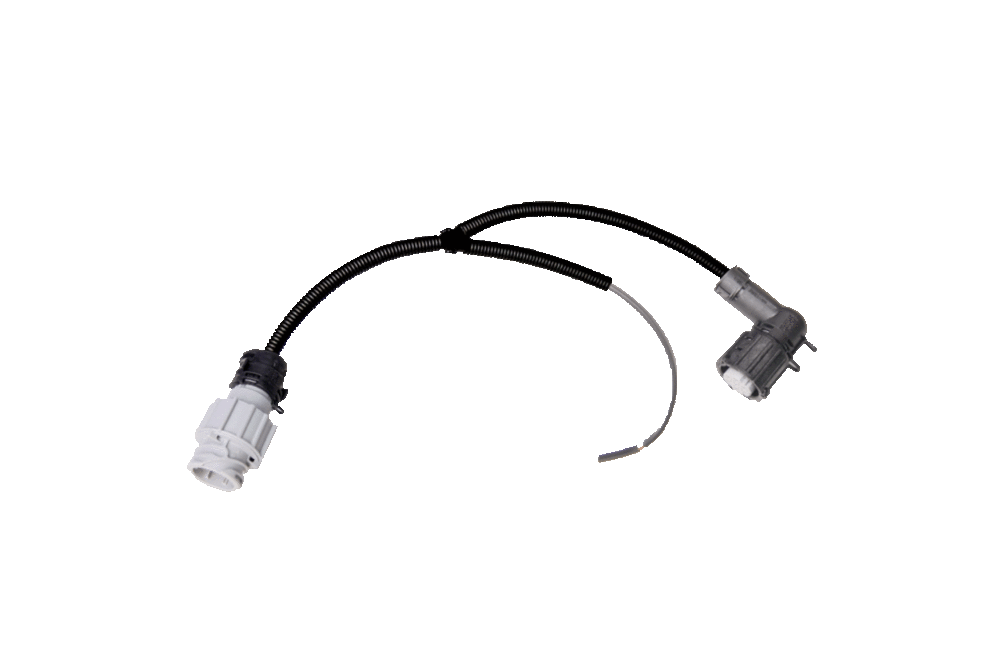

7-pin Extension Cable DIN 72585 Lear with Branch
7-pin extension cable 24V for rear lamps with DIN round connectors and with a 2-pin branch, suitable for MAN, Scania, DAF, Renault, Volvo, Mercedes Benz, Iveco, VW, Nissan, Mitsubishi, ….
Optionally with a straight or angled socket housing. Available in various lengths and versions.
Used e.g. for adding a licence plate lamp.
7-pin Extension Cable DIN 72585 Lear with Branch
The 7-pin extension cable consists of a 7-pin pin and socket housing according to DIN 72585 / ISO 15170, fitted with contacts and single-wire seals, assembled with single wires FLRY-B 5x 1,0 mm² + 1x 1,5 mm² + 1x 2,5 mm² in a corrugated tube NW 8,5 standard profile made of PA6 and either straight or 90° angled corrugated tube adapters. The 2-pin branch is designed with either a 2-pin round cable FLRYY 2x1,0 mm², a 2-pin flat cable suitable for Aspöck P&R 2x1,5 mm² or a 2-pin flat cable suitable for Aspöck DC 2x0,75 mm².
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
Various versions can be selected according to the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length A / B / C [mm] | Corrugated tube adapter | Version | Item no. |
|---|---|---|---|
| 250 / 1350 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 2 STL) | 083 132 162 *) |
| 250 / 1750 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 2 STL) | 083 132 202 *) |
| 250 / 1350 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 2 STL) | 083 135 162 *) |
| 250 / 1750 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 2 STL) | 083 135 202 *) |
| 250 / 1350 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 2 STL) | 083 142 162 |
| 250 / 1750 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 2 STL) | 083 142 202 |
| 250 / 1350 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 2 STL) | 083 145 162 |
| 250 / 1750 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 2 STL) | 083 145 202 |
suitable for Volvo / PIN 4 = position light
| Length A / B / C [mm] | Corrugated tube adapter | Version | Item no. |
|---|---|---|---|
| 250 / 1350 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 4 STL) | 183 432 162 |
| 250 / 1750 / 2000 | 90° / 180° | 2x1,0 mm² round cable (Pin 4 STL) | 183 432 202 |
| 250 / 1350 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 4 STL) | 183 435 162 |
| 250 / 1750 / 2000 | 90° / 180° | 2x1,5 mm² Aspöck P&R (Pin 4 STL) | 183 435 202 |
| 250 / 1350 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 4 STL) | 183 442 162 |
| 250 / 1750 / 2000 | 2 x 180° | 2x1,0 mm² round cable (Pin 4 STL) | 183 442 202 |
| 250 / 1350 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 4 STL) | 183 445 162 |
| 250 / 1750 / 2000 | 2 x 180° | 2x1,5 mm² Aspöck P&R (Pin 4 STL) | 183 445 202 |
