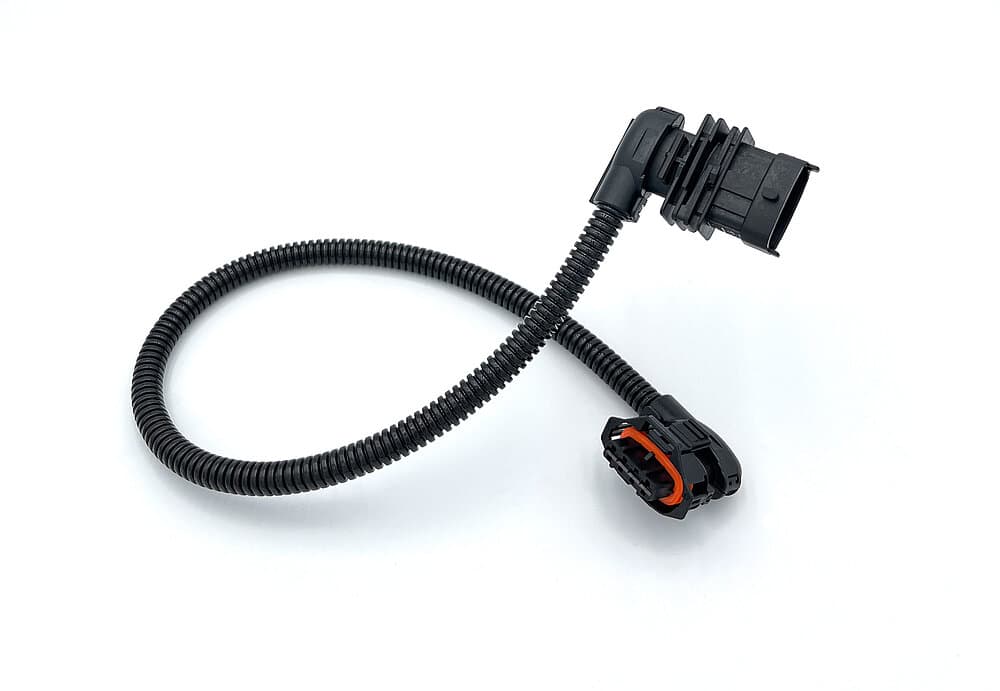

4-pin extension cable fuel level sender
4-pin extension cable for fuel level senders with Bosch Kompakt 1.a connectors, suitable for Iveco Daily.
Optionally with a straight or angled socket housing. Available in various lengths and versions.
4-pin extension cable fuel level sender
The 4-pin extension cable consists of a 4-pin pin housing and socket housing of the Bosch Kompakt 1.a series fitted with contacts and single-wire seals, assembled with single wires FLRY-B 4x 1,5 mm² in a corrugated tube NW 8,5 standard profile made of PA6 and optionally straight or 90° angled corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The stated lengths refer to the length of the individual cables.
Variants
| Length [mm] | Corrugated tube adapter | Item no. |
|---|---|---|
| 1000 | 2 x 90° | 085 400 001 |
| 2000 | 2 x 90° | 085 400 002 |
| 3000 | 2 x 90° | 085 400 003 |
| 4000 | 2 x 90° | 085 400 004 |
