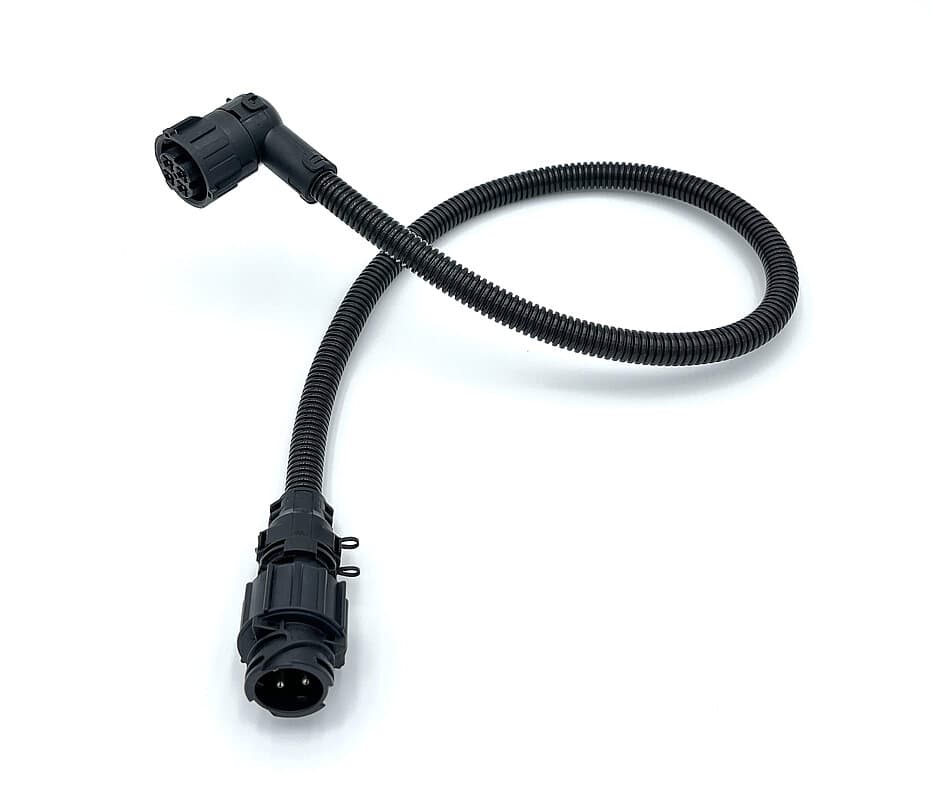

4-pin extension cable solenoid valve
4-pin extension cable for solenoid valves, sensors, fuel level senders, … with DIN round connectors, suitable for MAN.
Optionally with a straight or angled socket housing. Available in various lengths and versions.
4-pin extension cable solenoid valve
The 4-pin extension cable consists of a 4-pin pin housing and socket housing according to DIN 72585 / ISO 15170 fitted with contacts and single-wire seals, assembled with single wires FLRY-B 4x 1,5 mm² in a corrugated tube NW 8,5 standard profile made of PA6 and either straight or 90° angled corrugated tube adapters.
These are assembled and tested to very high quality standards, ensuring protection class IP67 and an operating temperature of -40°C to +120°C.
You can choose from the various versions listed in the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
The lengths stated refer to the length of the single wires.
Variants
| Length [mm] | Corrugated tube adapter | Item no. |
|---|---|---|
| 1000 | 90° / 180° | 085 200 001 |
| 2000 | 90° / 180° | 085 200 002 |
| 3000 | 90° / 180° | 085 200 003 |
| 4000 | 90° / 180° | 085 200 004 |
| 1000 | 2 x 180° | 085 288 001 |
| 2000 | 2 x 180° | 085 288 002 |
| 3000 | 2 x 180° | 085 288 003 |
| 4000 | 2 x 180° | 085 288 004 |
