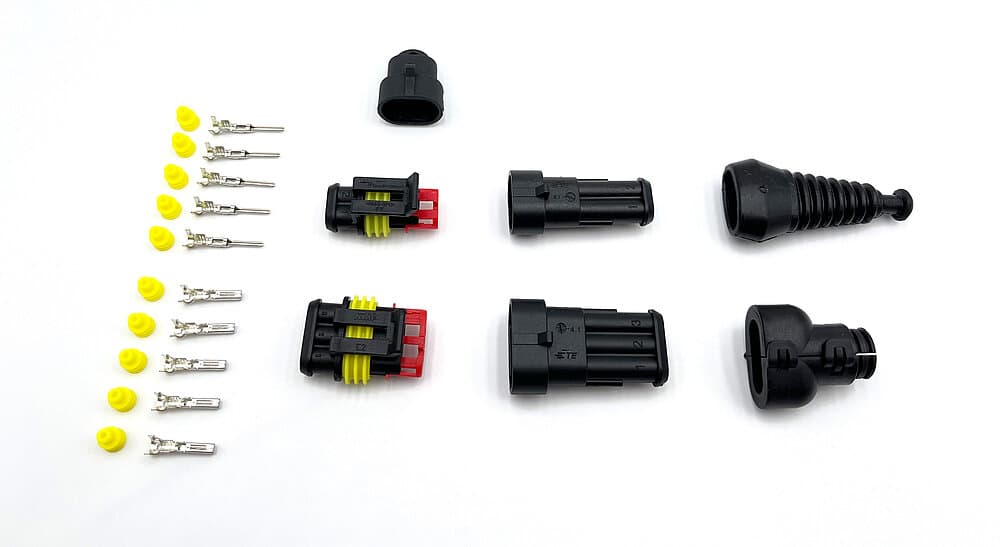

Superseal
Superseal connectors 1.5 mm for the automotive, agricultural and industrial machinery industries.
Optionally as a set with contacts and single-wire seals or individually. Available in various versions.
Used e.g. for side marker lamps, sensors, …
Superseal
The AMP Superseal 1.5 series was developed to meet the higher technical requirements placed on connectors with regard to water tightness. The AMP Superseal 1.5 series complies with the regulations of IEC 529 and DIN 40050 IP 67 and is therefore suitable for use in the automotive industry, agriculture and the machinery industry. This system is also suitable for use on sensors.
Various versions can be selected according to the table below; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
Variants
| Type | Reference no. |
|---|---|
| Pin contact 0,75 - 1,5 mm² | 282109-1 |
| Socket contact 0,75 - 1,5 mm² | 282110-1 |
| Pin contact 1,5 - 2,5 mm² | 282465-1 |
| Socket contact 1,5 - 2,5 mm² | 282466-1 |
| Single-wire seal yellow | 281934-2 |
| Blind seal red | 282081-1 |
| 1-pin pin housing | 282103-1 |
| 1-pin socket housing | 282079-2 |
| 2-pin pin housing | 282104-1 |
| 2-pin socket housing | 282080-1 |
| 3-pin pin housing | 282105-1 |
| 3-pin socket housing | 282087-1 |
| 4-pin pin housing | 282106-1 |
| 4-pin socket housing | 282088-1 |
| 5-pin pin housing | 282107-1 |
| 5-pin socket housing | 282089-1 |
| 6-pin pin housing | 282108-1 |
| 6-pin socket housing | 282090-1 |
