HDSCS

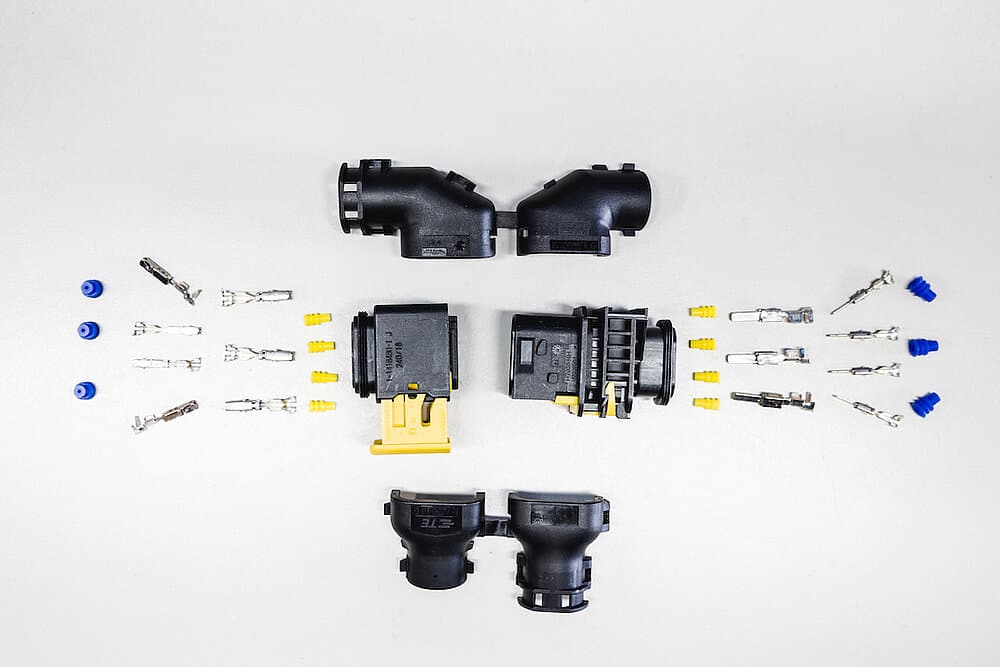

HDSCS connectors for the commercial vehicle industry and off-road applications.
Available as a set with contacts and single-wire seals or individually. Available in various versions.
Used, for example, for rear lamps, fuel level senders, sensors, …
HDSCS
The HDSCS series was developed to meet the stringent requirements of the commercial vehicle industry and off-road applications, which demand the highest performance standards.
HDSCS connectors are made of a robust thermoplastic rated UL94 V-0 and feature an integrated secondary lock with poka-yoke function, which can be used for in-line or flange-mount applications in a wire-to-wire or wire-to-device configuration.
The HDSCS series complies with IEC 529 and DIN 40050 IP 67 and IP 6K9K (when used with a backshell) and is available in 5 housing sizes with 4 coding options. They are offered in arrangements from 2 to 18 positions. Accessories include backshells, protective caps, cavity plugs and mounting rails.
As shown in the table below, you can choose from various versions; the versions marked as preferred type *) are produced in larger quantities and kept in stock. This usually results in a lower price and/or shorter delivery times.
| Type | Reference no. |
|---|---|
| Pin contact 1.5K 0,5-1,0 mm² | 964269-2 |
| Socket contact 1.5K 0,5-1,0 mm² | 1241380-1 |
| Single-wire seal yellow 1,9-2,4 mm | 964972-1 |
| Pin contact 2.8 0,5-1,0 mm² | 1-962915-1 |
| Socket contact 2.8 0,5-1,0 mm² | 1-968855-1 |
| Single-wire seal blue 1,2-2,1 mm | 828904-1 |
| Corrugated tube adapter 180° NW 13 size C | 1670364-1 |
| Corrugated tube adapter 90° NW 13 size C | 1670057-1 |
| 7-pin pin housing size C black | 1-1703648-1 |
| 7-pin socket housing size C black | 1-1418480-1 |
| 8-pin pin housing size C black | 1-1564512-1 |
| 8-pin socket housing size C black | 1-1418479-1 |
